Twinstop
| Structures | Building, Other, Shaft, Tower |
|---|---|
| Fastening surface | Concrete, Masonry, Other, Steel |
| Surface of the substrate | Other, Plane (flat), Round (tube), Steel grid |
| Fall protection | Fixed ladder, Guide rail |
| Fall protection material | Anodized aluminum, Stainless steel, Steel hot dipped galvanized |
Guided type fall arrester according to EN353-1 with speed-dependent locking mechanism and supplementary test for overhanging climbing paths up to 20° to the front and rear and 15° to the side. With integrated energy absorber that reduces the impact force to less than 6 kN. Rollers made of highly wear-resistant plastic.
- Instruction manual included
- Protective bag sold separately
- Certified according to the new PPE regulation
5 variants for your requirements
Our patented collection device is currently available in the following versions:

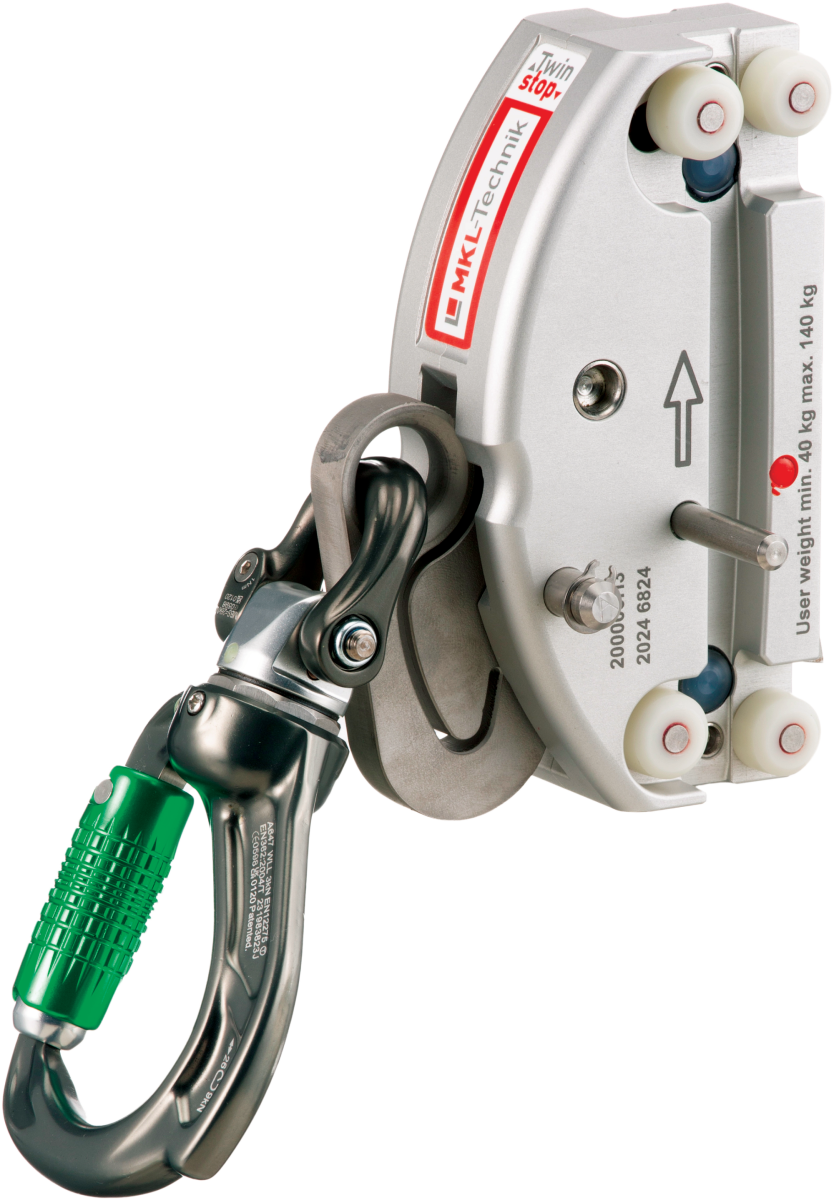

basic
The basic version with Trilock carabiner.
- Short connection
- Highest safety at low cost
With swivel
Our best-selling fall arrester with swivel and Trilock carabiner.
- Higher comfort due to swivel
- Suitable for all safety harnesses with horizontally and vertically attached arrester eyes

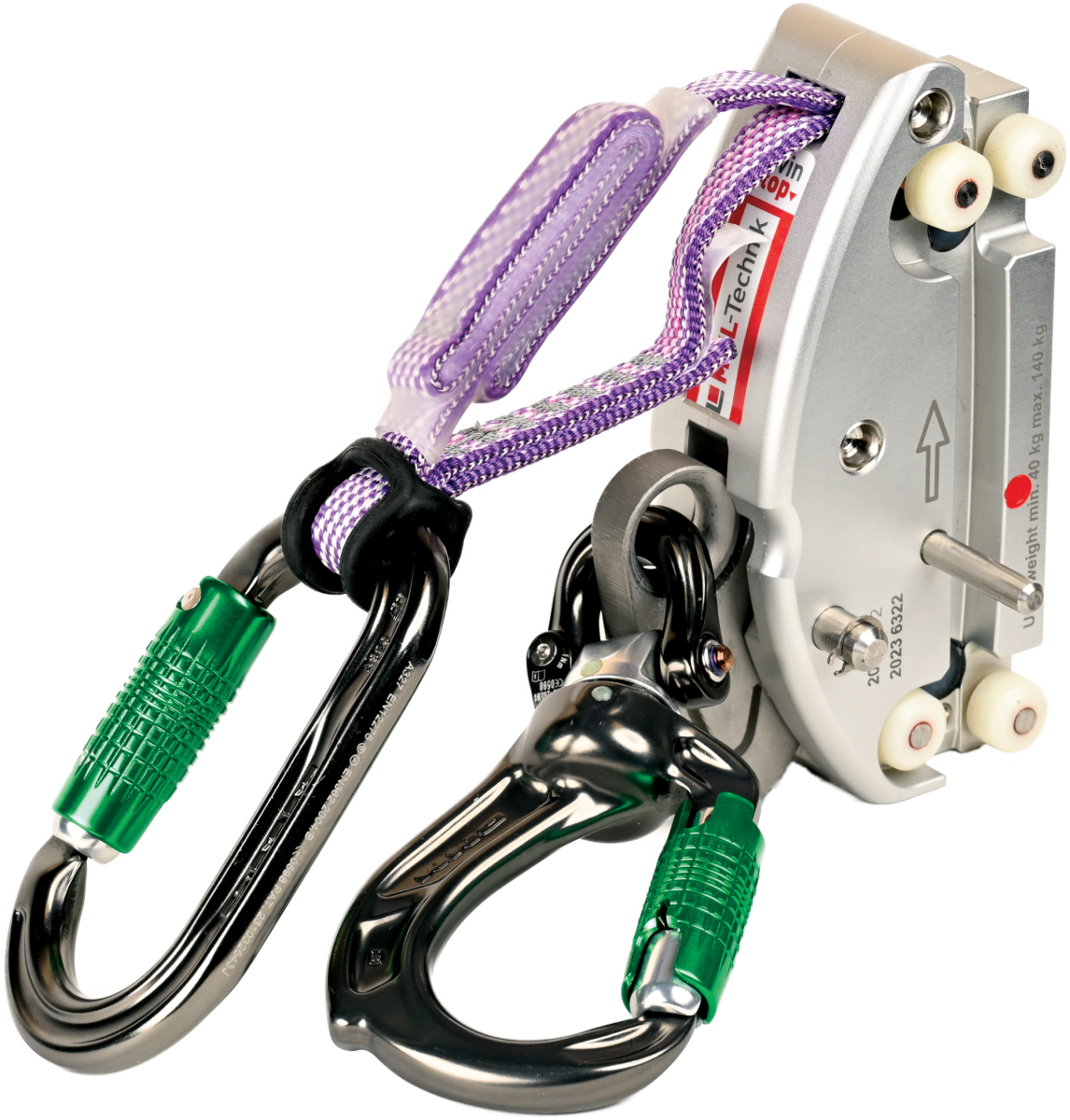

with double connection
Prevents backward mugging in advance. With swivel and trilock carabiner
- Preventive fall prevention
- Higher mental safety for the user

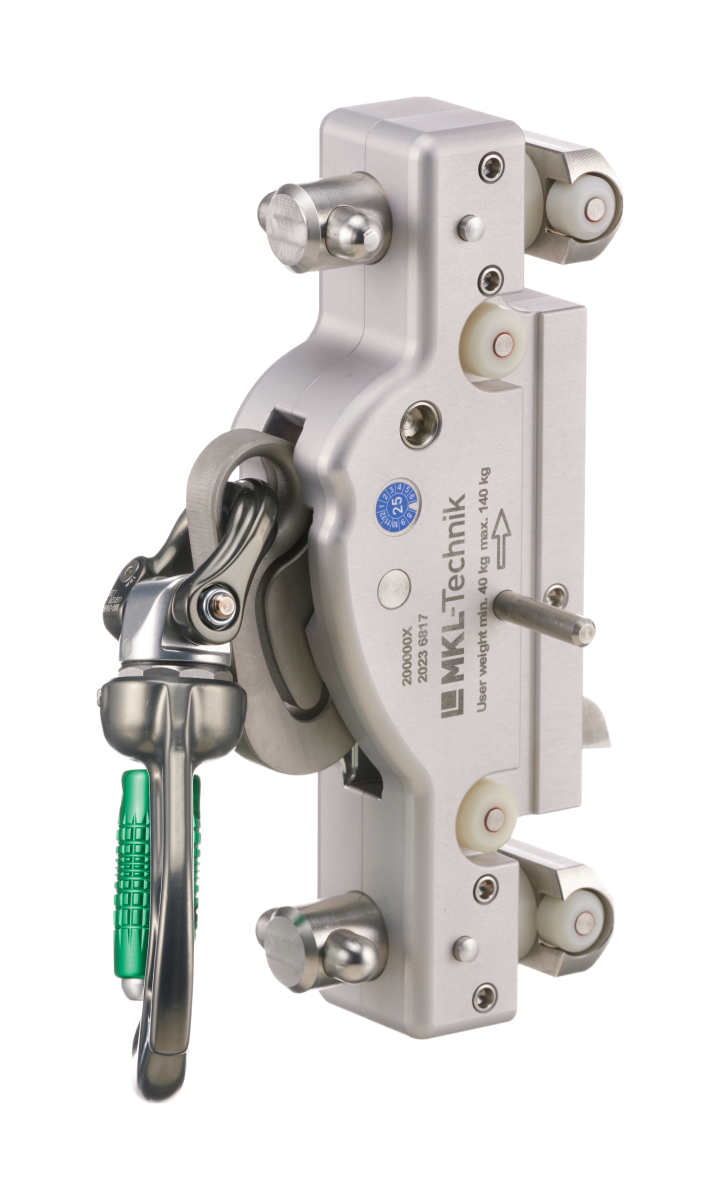

universal
removable
The fall arrester can be removed from the fixed guide at any point. With swivel and trilock carabiner.
- Maximum flexibility with full security
- Integrated safety mechanism protects against incorrect insertion
universal

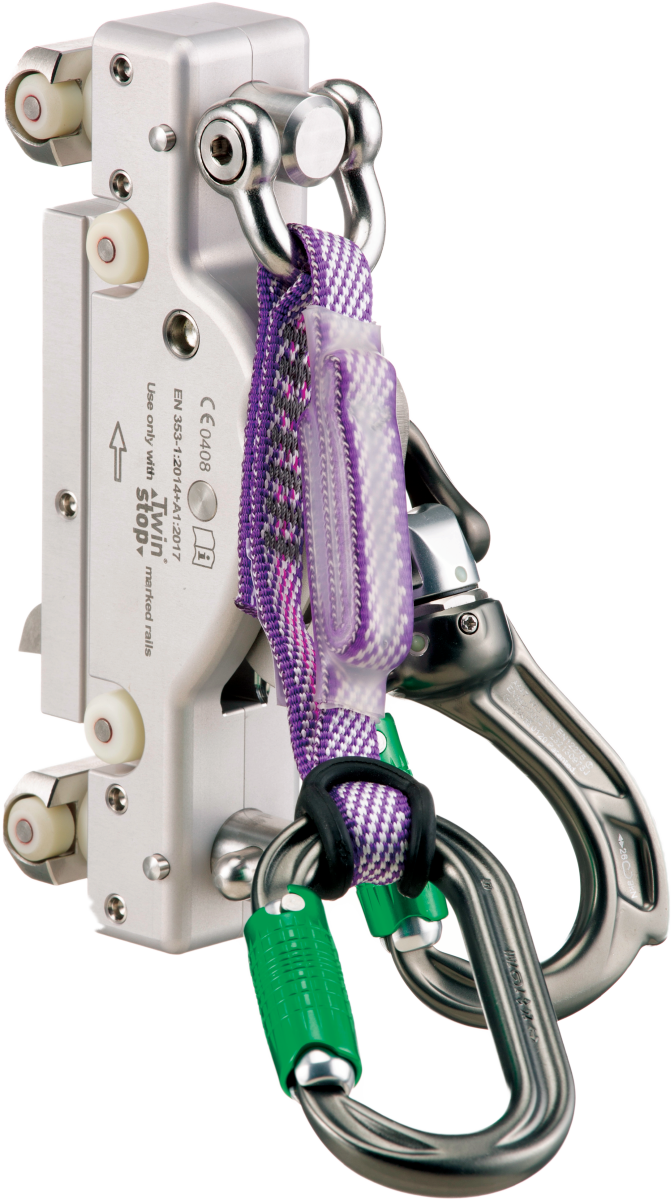

removable + double connection
The fall arrester can be removed from the fixed guide at any point. With swivel, trilock carabiner and double connection.
- Maximum flexibility with full security
- Integrated safety mechanism protects against incorrect insertion
Another advantage of our fall protection system: The integrated climbing aid
The fall arrester provides a climbing aid function as it unlocks on back pull. The user can lean back in a relaxed manner and does not have to pull himself to the ladder with his arms. To make the best use of this advantage, we recommend the use of an arrester loop in the abdominal area of the harness.
By the way!
Our Twinstop® system fall arresters (runners or carriages) are tested and approved with the rails and ladders from Safety Climbing Systems GmbH (formerly Logaer Maschinenbau GmbH), which are primarily installed in Enercon wind turbines.
The Twinstop® fall arresters are therefore an excellent alternative to the Railstop RS S05 / Railstop RS S06 fall arrester from Bornack GmbH & Co. KG.
These components you need for your fall protection system
- Guide rail or ladder with integrated guide rail
- Fastening element
- Profile connector
- Climbing lock bottom 12 kN
- Climbing lock top 12 kN
- Identification plate
- Fall arrester
