Exit device for FV
| Structures | Building, Other, Shaft, Tower |
|---|---|
| Fastening surface | Concrete, Masonry, Other, Steel |
| Surface of the substrate | Other, Plane (flat), Round (tube), Steel grid |
| Fall protection | Fixed ladder, Guide rail |
| Fall protection material | Anodized aluminum, Stainless steel, Steel hot dipped galvanized |

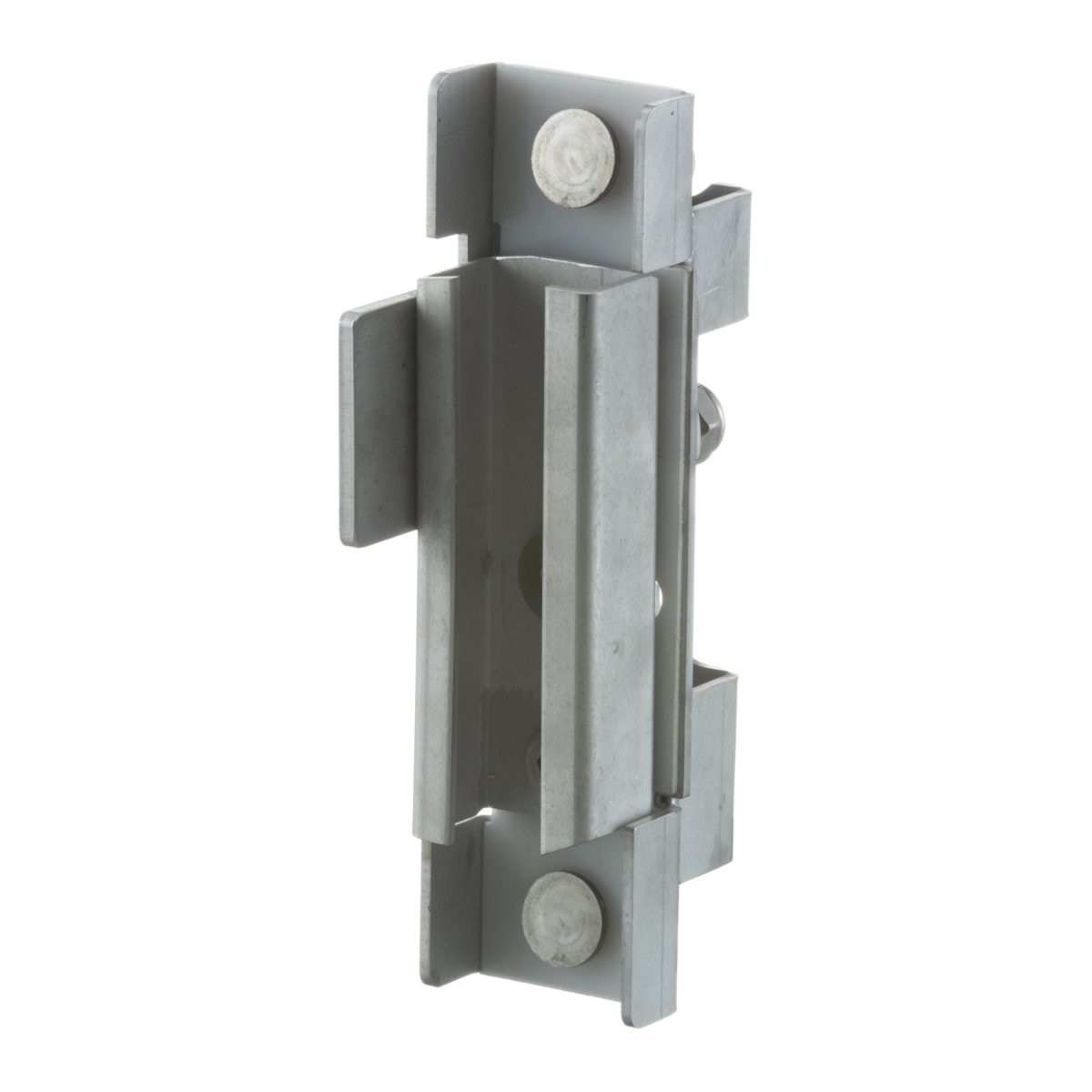

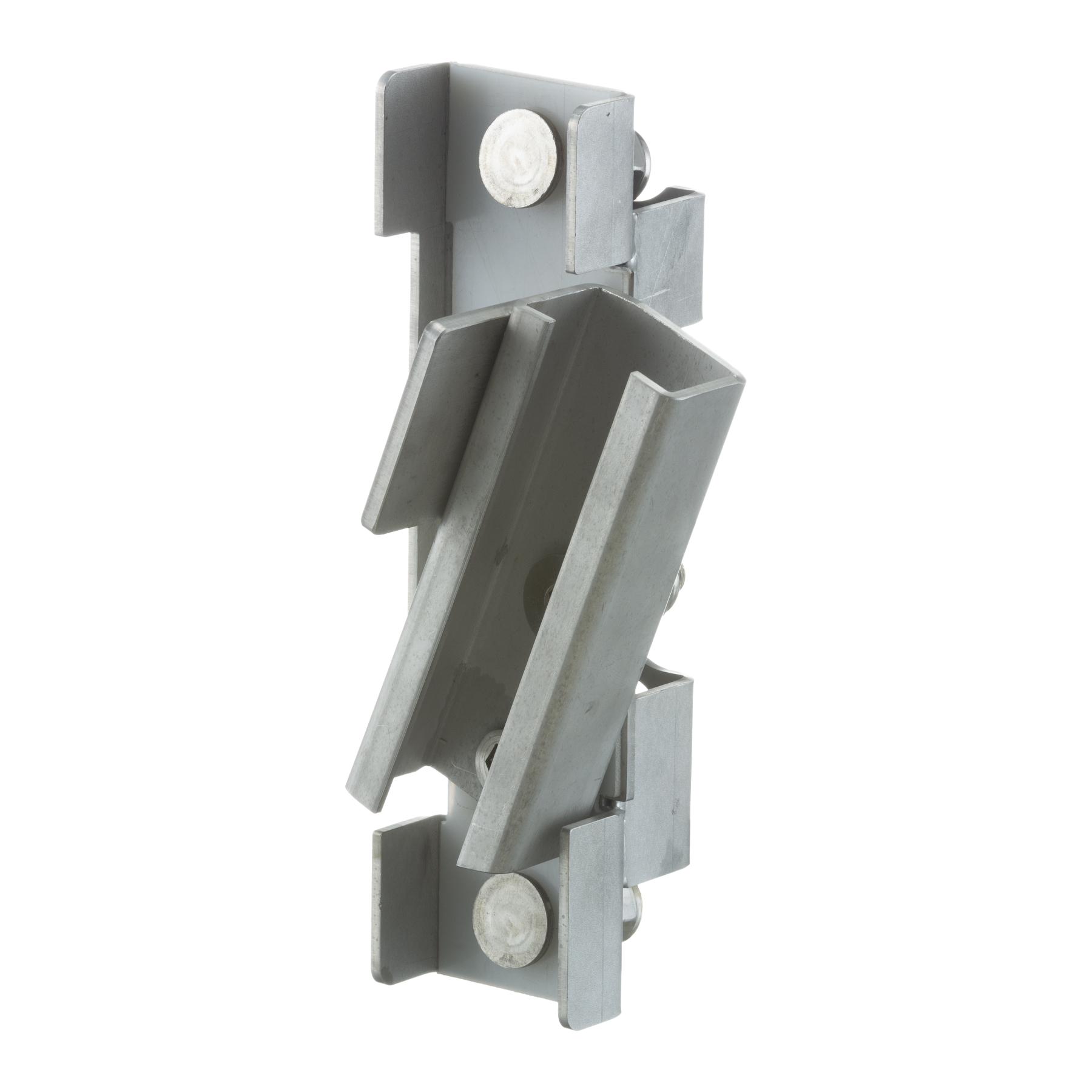

The exit device is used to safely remove and insert the fall arrester, on access routes with a guide rail, e.g. on
Work platforms.
- Available in stainless steel
- Mounting aid is recommended
1 variant for your requirements
Fastening to the guide rail – To ensure maximum safety, a clamp must be mounted on the nearest rung, above and below.
FOR RAIL ST / VA / AL
Stainless steel, pickled (1.4401/1.4571)
- Rung spacing: min. 250mm
- Installation height: approx. 1000mm above working platform
- Weight: from 1,3kg
These components you need for your fall protection system
- Guide rail or ladder with integrated guide rail
- Fastening element
- Profile connector
- Climbing lock bottom 12 kN
- Climbing lock top 12 kN
- Identification plate
- Fall arrester
