Masonry bracket
| Structures | Building, Other, Shaft, Tower |
|---|---|
| Fastening surface | Concrete, Masonry, Other |
| Surface of the substrate | Other, Plane (flat) |
| Fall protection | Fixed ladder, Guide rail |
| Fall protection material | Anodized aluminum, Stainless steel, Steel hot dipped galvanized |
The masonry bracket is used to fix the riser to substructures with low strength, e.g. bricks
- Available in steel and stainless steel
2 variants for your requirements
Projections: 160mm (standard), further in 10 mm increments up to max. 1000 mm
Mounting distance: 560mm (recommended)
Fixing material-Ø 12mm is required for fastening to the substrate.

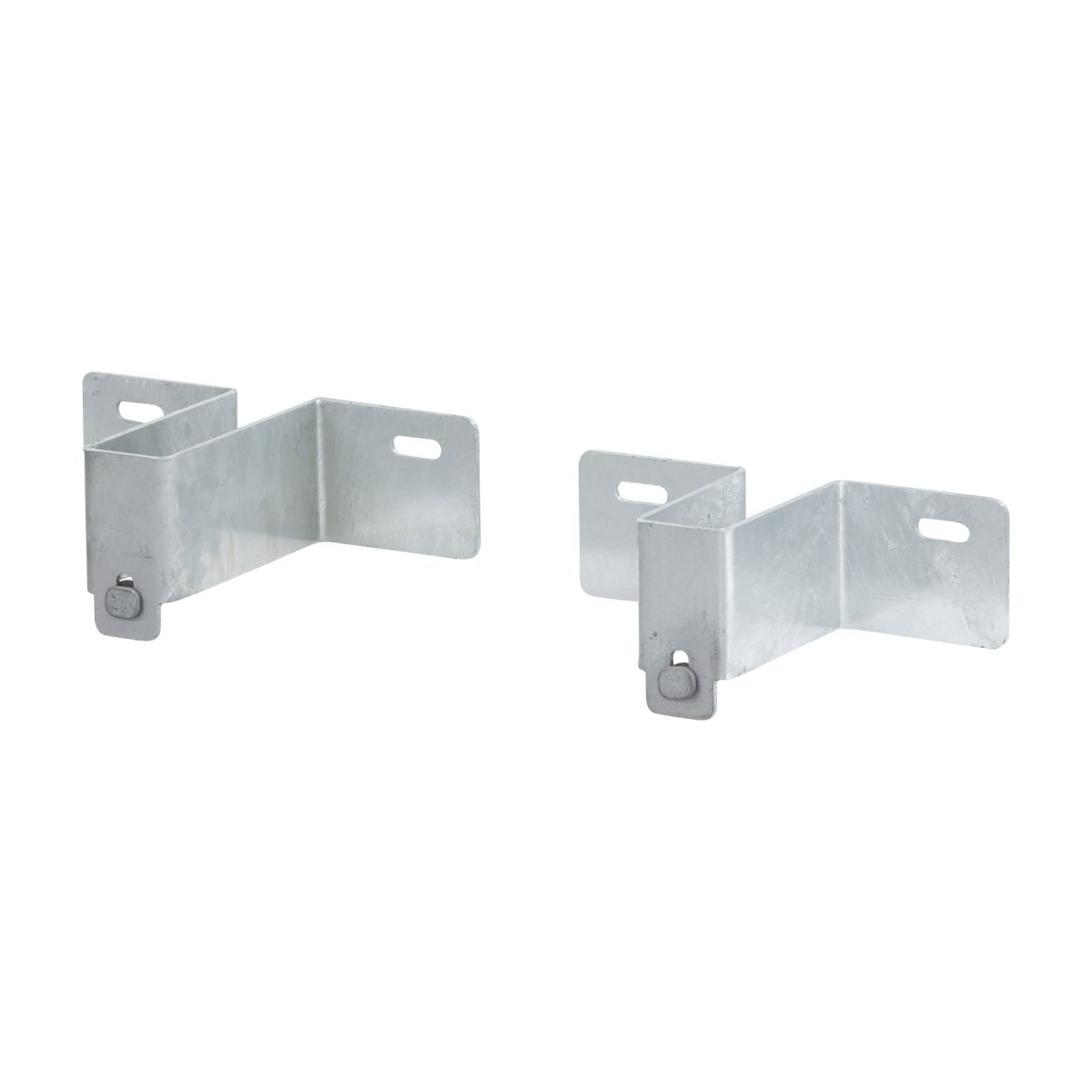

ST
Steel St-tZn, hot-dip galvanized (1.0037)
- incl. Screw
- Weight: 2,8kg

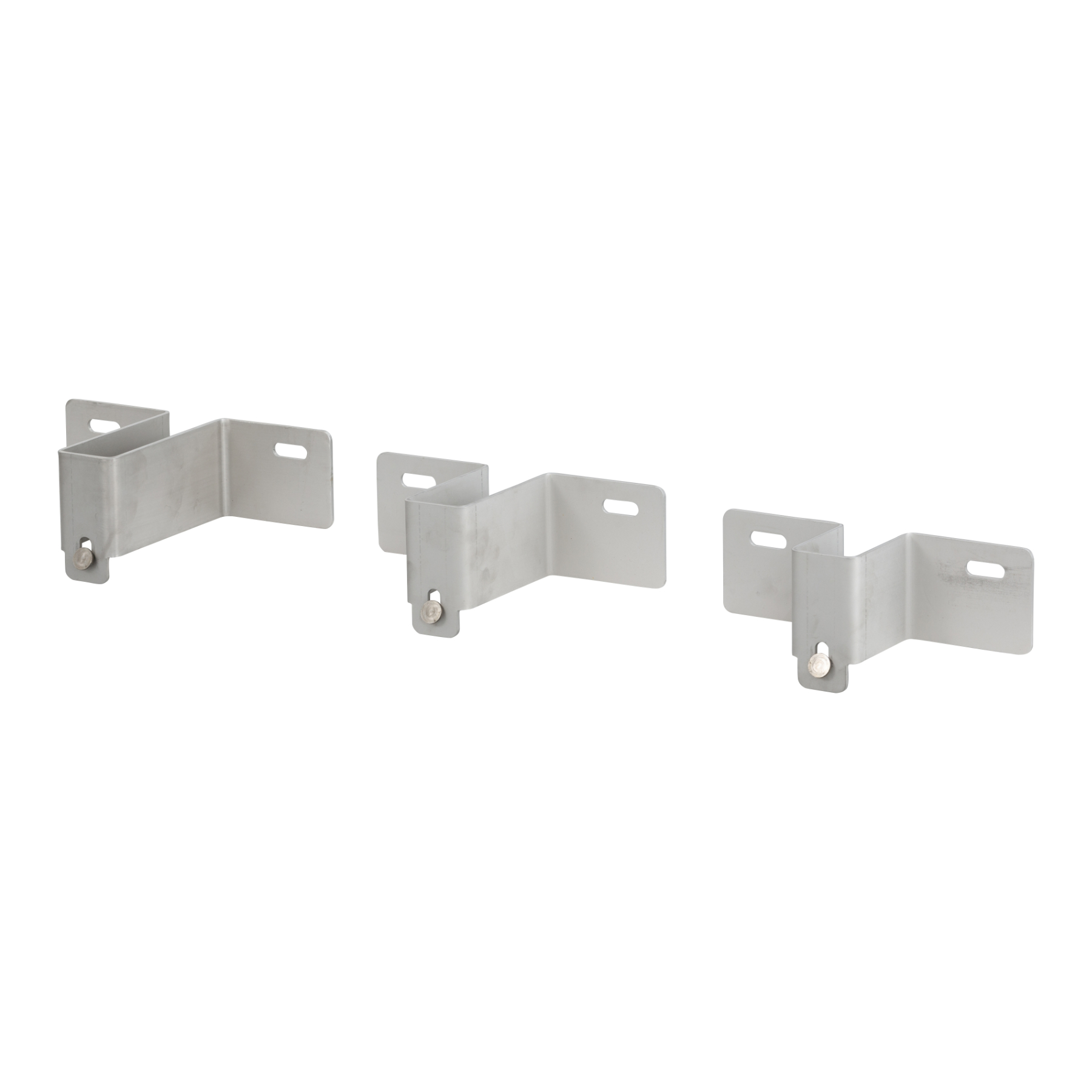

VA
Stainless steel, pickled (1.4401/1.4571)
- incl. Screw
- Weight: 2,8kg
These components you need for your fall protection system
- Guide rail or ladder with integrated guide rail
- Fastening element
- Profile connector
- Climbing lock bottom 12 kN
- Climbing lock top 12 kN
- Identification plate
- Fall arrester
