Mounting bracket adjustable
| Structures | Building, Other, Shaft, Tower |
|---|---|
| Fastening surface | Concrete, Other, Steel |
| Surface of the substrate | Other, Plane (flat), Steel grid |
| Fall protection | Fixed ladder, Guide rail |
| Fall protection material | Anodized aluminum, Stainless steel, Steel hot dipped galvanized |

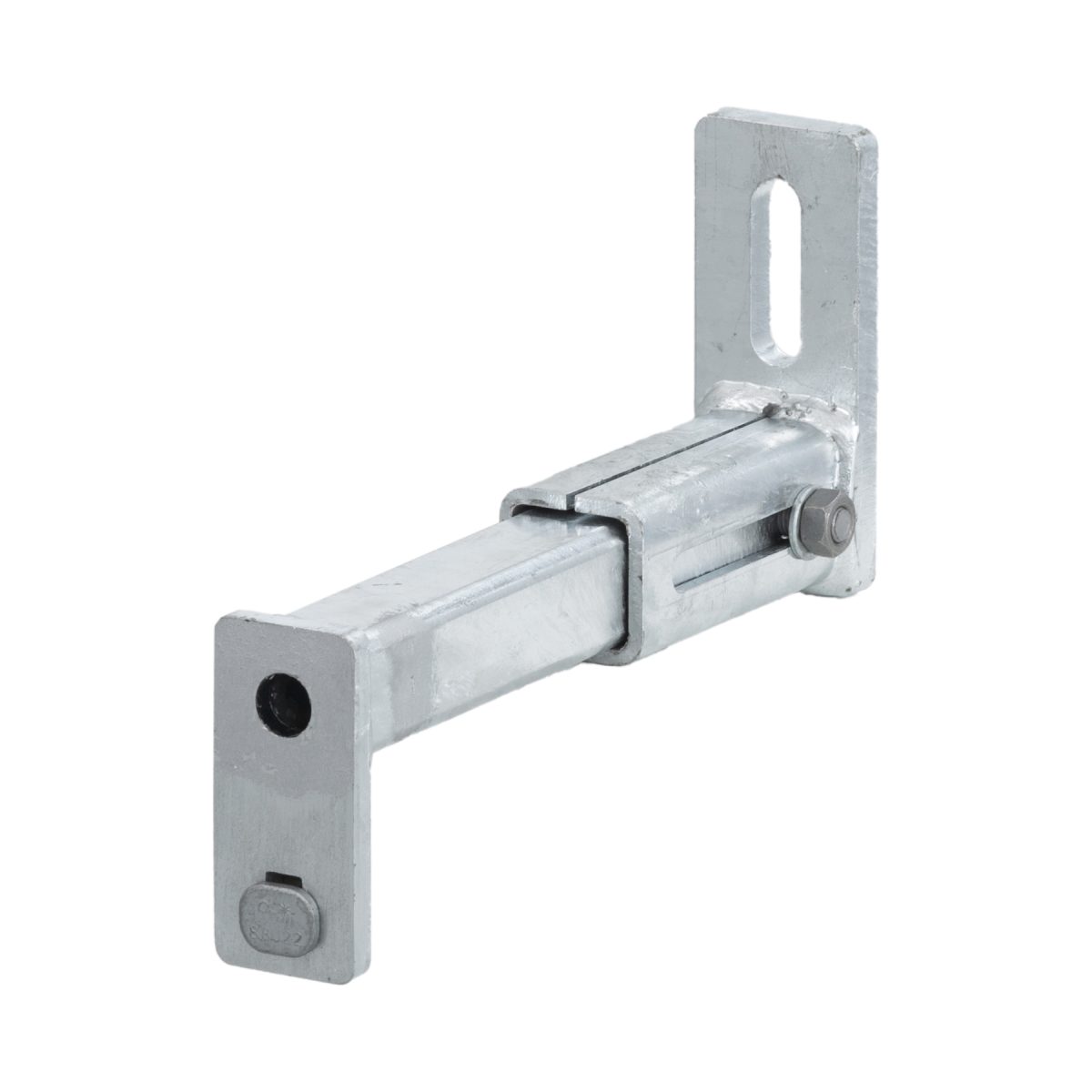

The mounting bracket covers all screw-on positions between the fixed ladder and the substructure by sliding and turning. The adjustable projection can compensate for height differences to the substructure
Unloading:
<120-160> adjustable from 120-160 mm
<160-200> adjustable from 160-200 mm
<150-225> adjustable from 150-225 mm
<225-300> adjustable from 225-300 mm
<300-375> adjustable from 300-375 mm
more on request
- Available in steel and stainless steel
2 variants for your requirements
Fastening material-Ø 16mm is required for fastening to the substrate

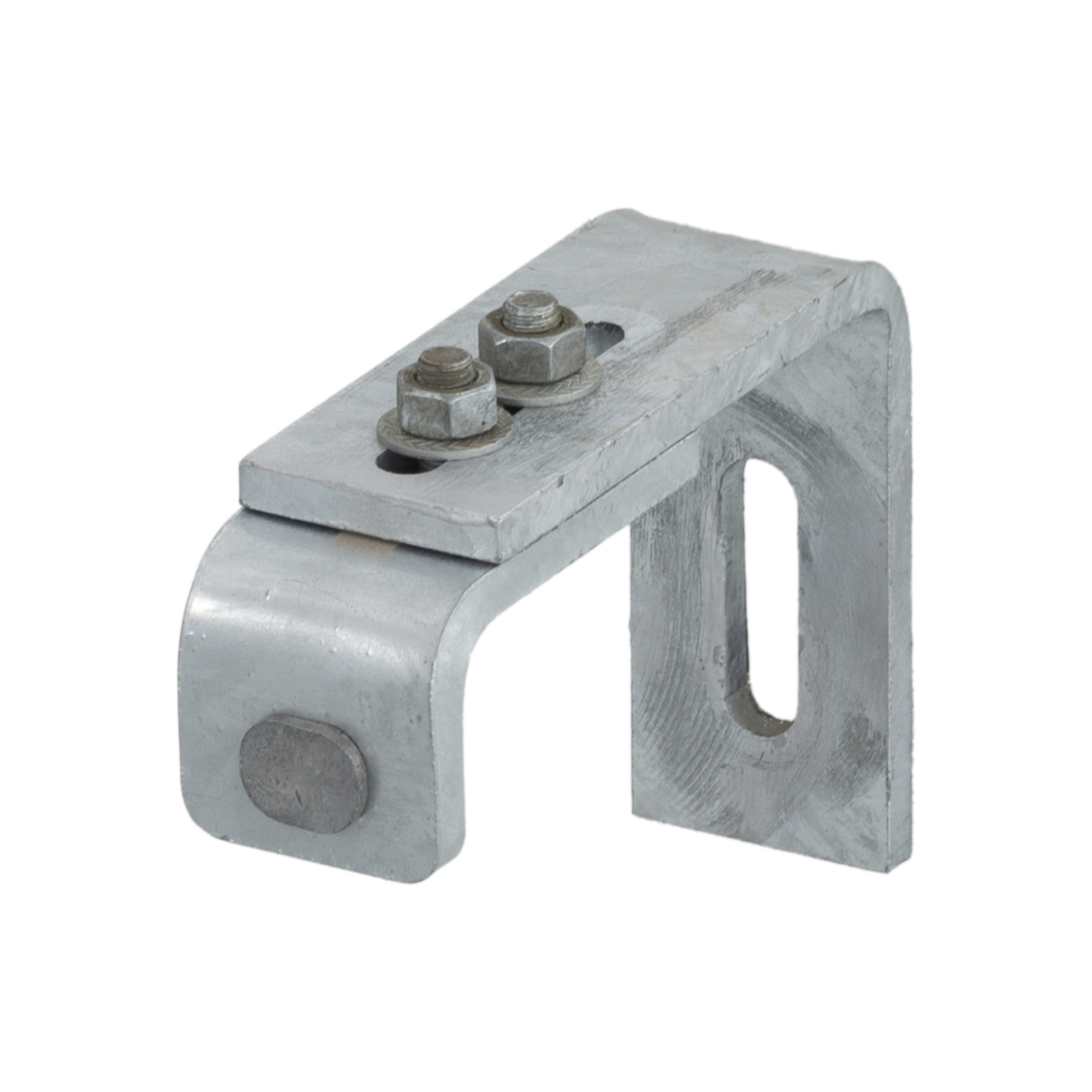

ST
Steel St-tZn, hot-dip galvanized (1.0037)
- incl. Screw
- Weight: 1.8kg - 2.5kg

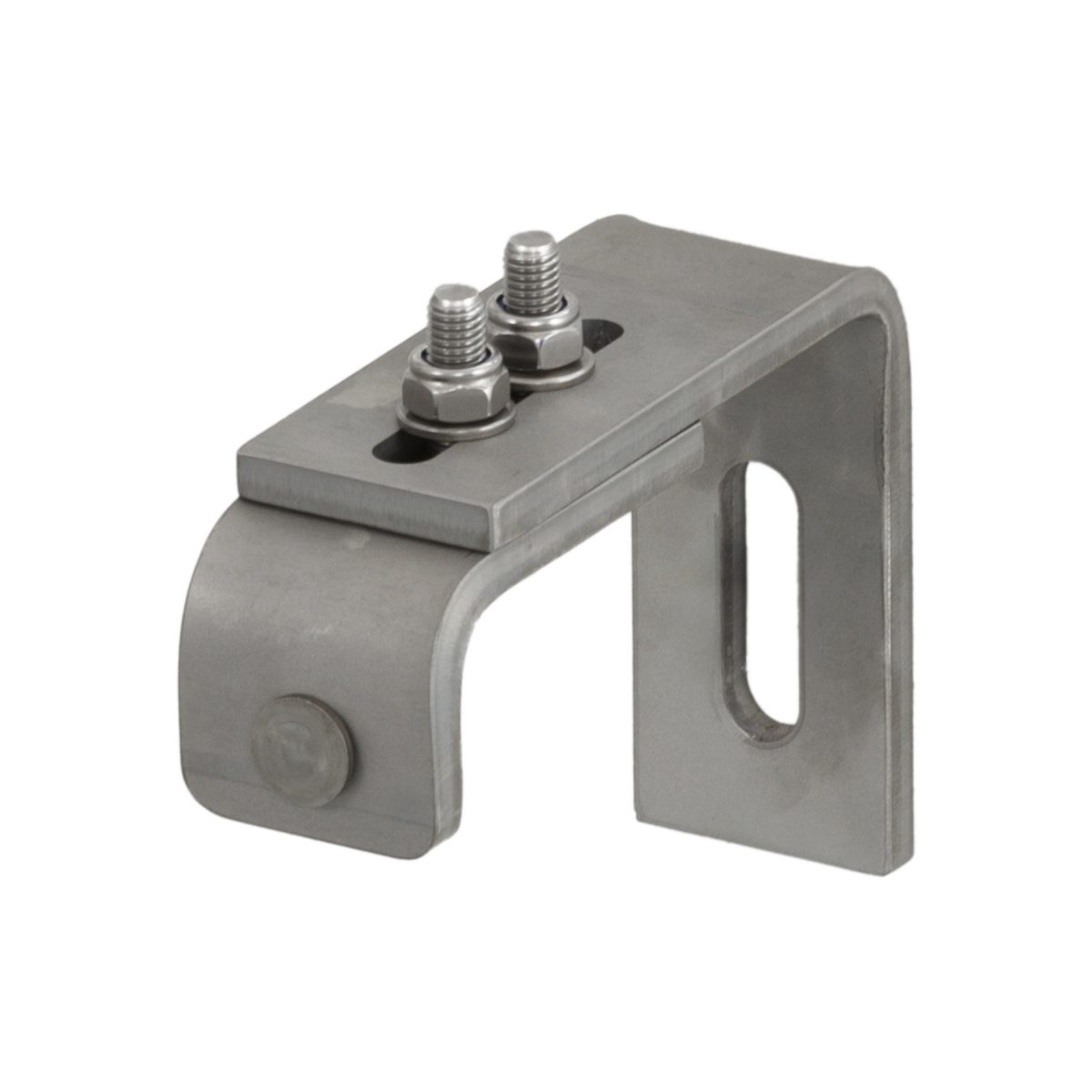

VA
Stainless steel, pickled (1.4401/1.4571)
- incl. Screw
- Weight: 1.8kg - 2.5kg
These components you need for your fall protection system
- Guide rail or ladder with integrated guide rail
- Fastening element
- Profile connector
- Climbing lock bottom 12 kN
- Climbing lock top 12 kN
- Identification plate
- Fall arrester
