Profile connector
| Structures | Building, Other, Shaft, Tower |
|---|---|
| Fastening surface | Concrete, Masonry, Other, Steel |
| Surface of the substrate | Other, Plane (flat), Round (tube), Steel grid |
| Fall protection | Fixed ladder, Guide rail |
| Fall protection material | Anodized aluminum, Stainless steel, Steel hot dipped galvanized |
Connecting element for guide rail ends
- Available in steel and stainless steel
- incl. Screws and locking tabs for easy mounting and high security
4 variants for your requirements

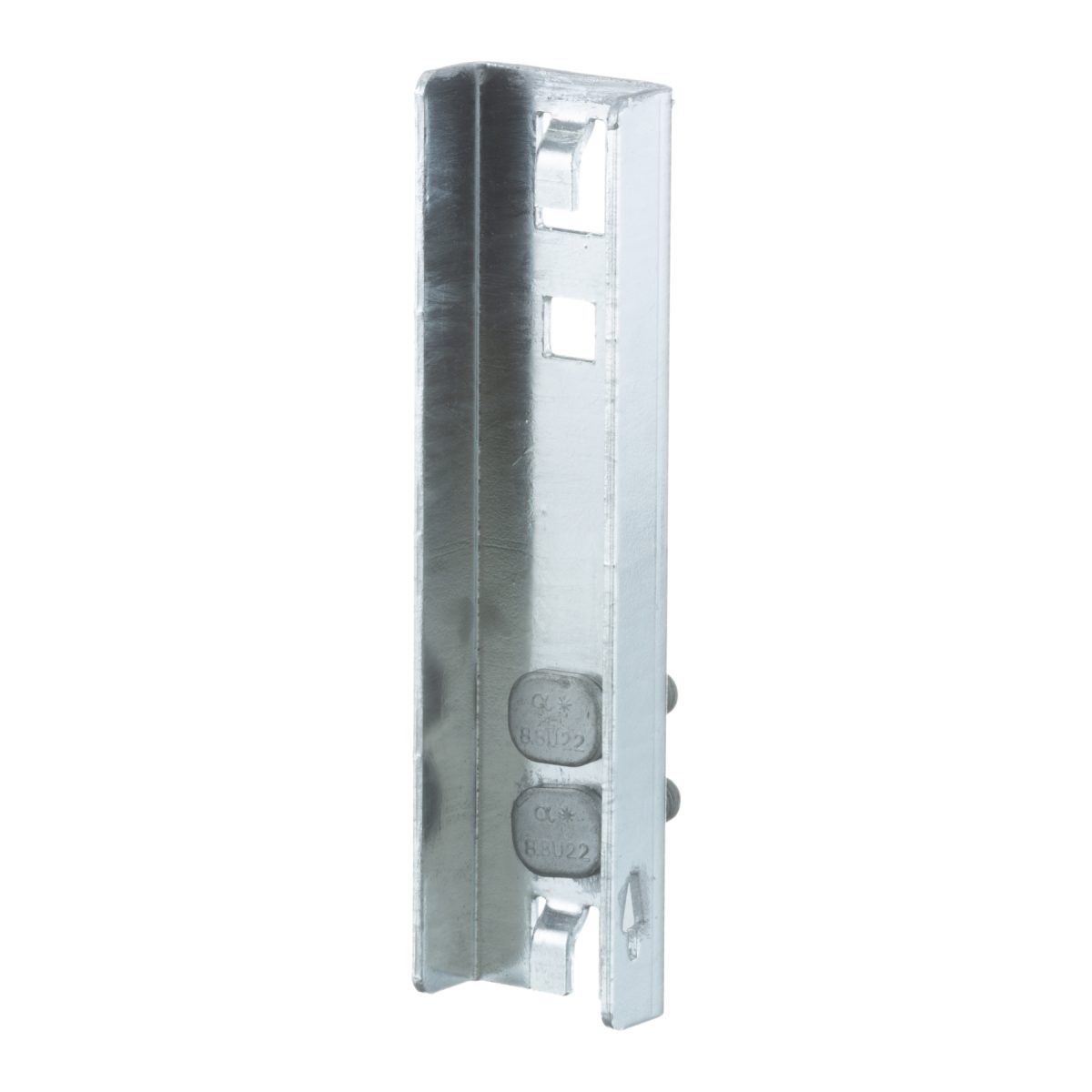

FOR RAIL ST
incl. Screws
- Steel St-tZn (1.0037 hot-dip galvanized)
- Weight: 0,6kg
- Design: 3 mounting holes + securing tabs

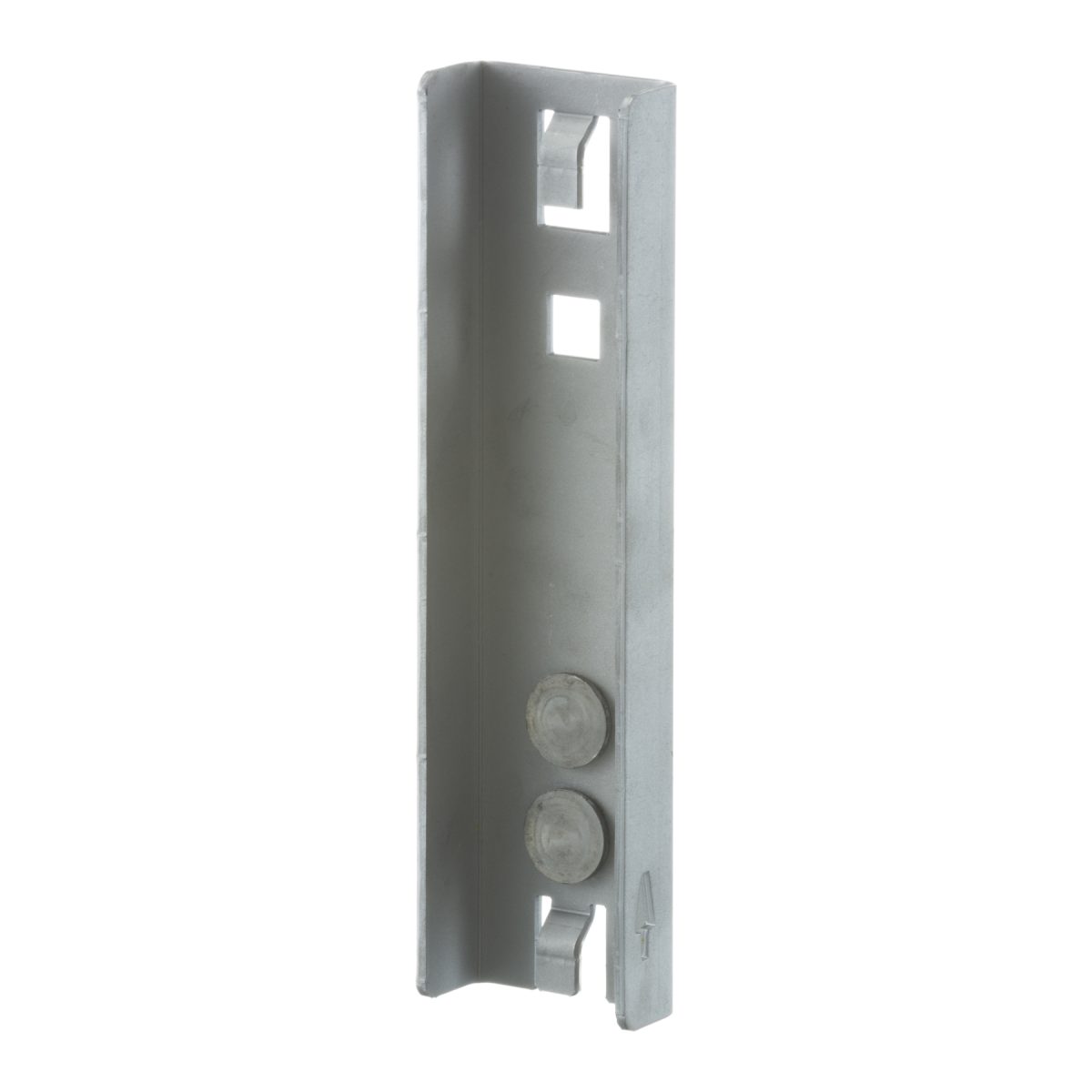

FOR RAIL VA
incl. Screws
- Stainless steel, pickled (1.4401/1.4571)
- Weight: 0,6kg
- Design: 3 mounting holes + securing tabs

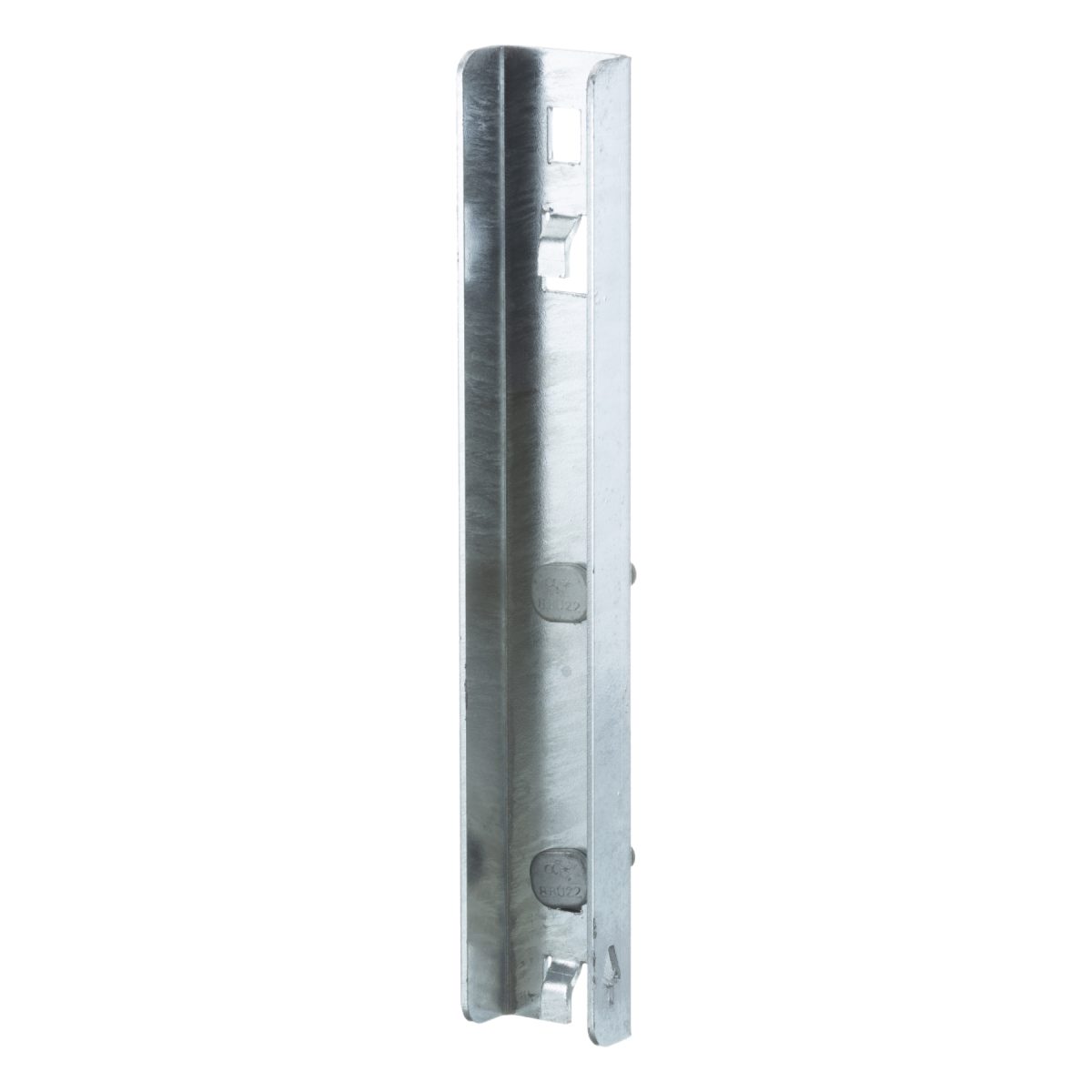

FOR RAIL AL
incl. Screws
- Steel St-tZn (1.0037 hot-dip galvanized)
- Weight: 0,4kg
- Design: 2 mounting holes + securing tabs

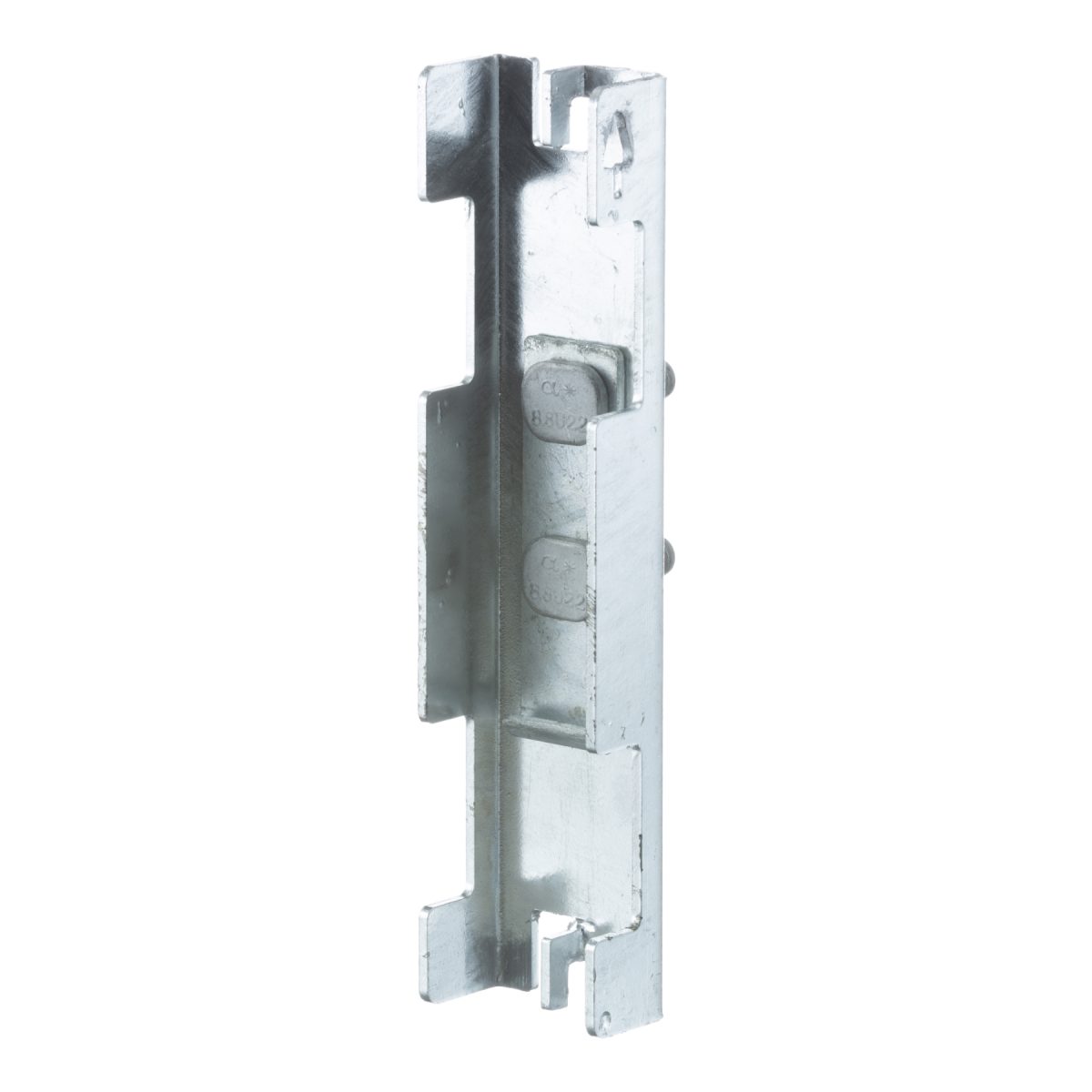

FOR LEADERS AL
incl. Screws
- Steel St-tZn (1.0037 hot-dip galvanized)
- Weight: 0,9kg
- Design: 3 mounting holes + securing tabs
These components you need for your fall protection system
- Guide rail or ladder with integrated guide rail
- Fastening element
- Profile connector
- Climbing lock bottom 12 kN
- Climbing lock top 12 kN
- Identification plate
- Fall arrester
