| Structures | Building, Other, Shaft, Tower |
|---|---|
| Fastening surface | Other, Steel |
| Surface of the substrate | Other, Plane (flat) |
| Fall protection | Fixed ladder, Guide rail |
| Fall protection material | Anodized aluminum, Stainless steel, Steel hot dipped galvanized |

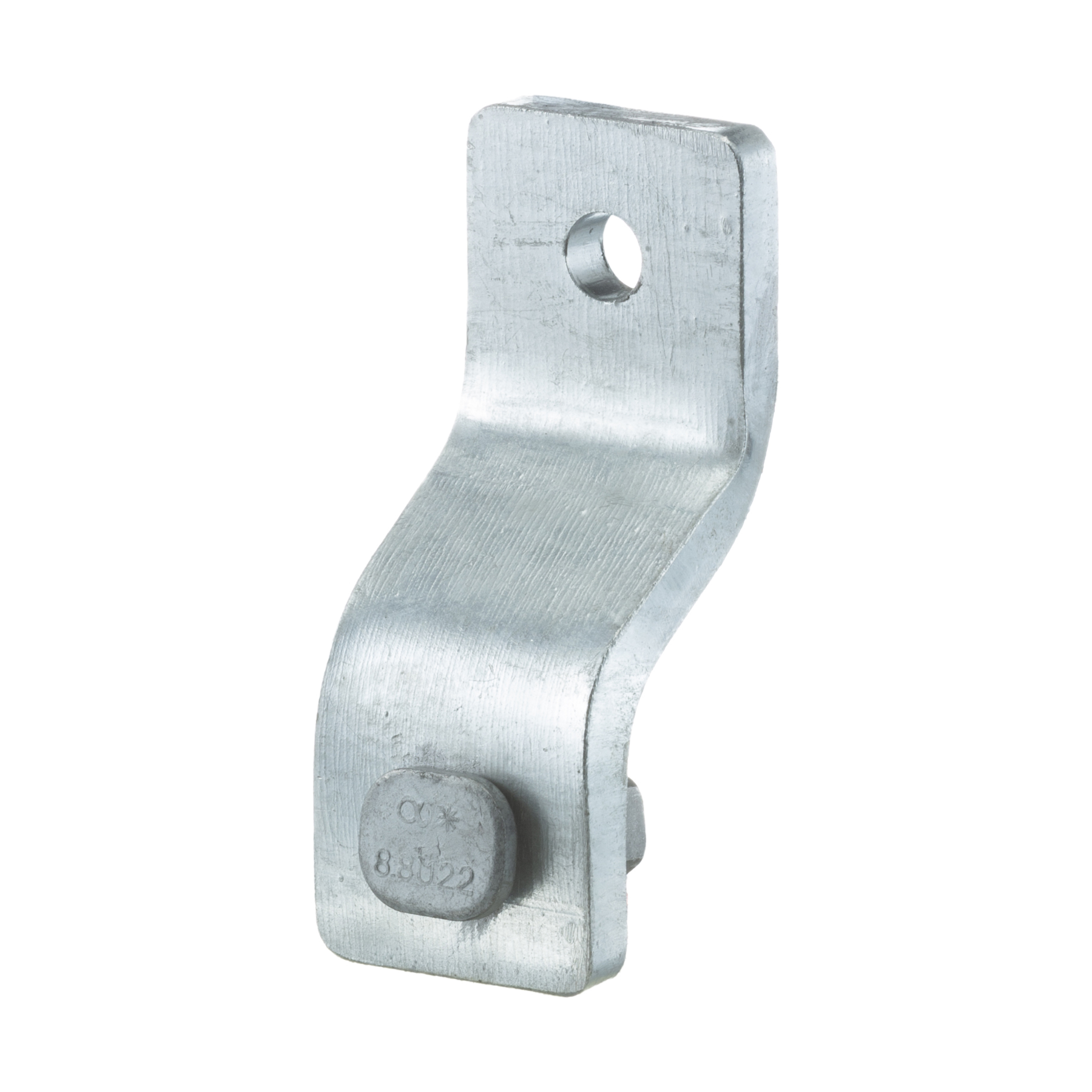

The holder is used to attach the rail or ladder to the substructure
- Available in steel and stainless steel
- Projection: 40mm (standard) - others on request
- Fastening material: Depending on the application and substructure - fastening material-Ø 16mm
2 variants for your requirements
ST
Steel St 8.8-tZn (hot-dip galvanized)
- Weight: 0,6kg
VA
Stainless steel, pickled (1.4401/1.4571)
- Weight: 0,6kg
These components you need for your fall protection system
- Guide rail or ladder with integrated guide rail
- Fastening element
- Profile connector
- Climbing lock bottom 12 kN
- Climbing lock top 12 kN
- Identification plate
- Collecting device
