Weld-on bracket
| Structures | Building, Other, Shaft, Tower |
|---|---|
| Fastening surface | Other, Steel |
| Surface of the substrate | Other, Plane (flat), Round (tube), Steel grid |
| Fall protection | Fixed ladder, Guide rail |
| Fall protection material | Anodized aluminum, Stainless steel, Steel hot dipped galvanized |
All welding regulations must be observed!

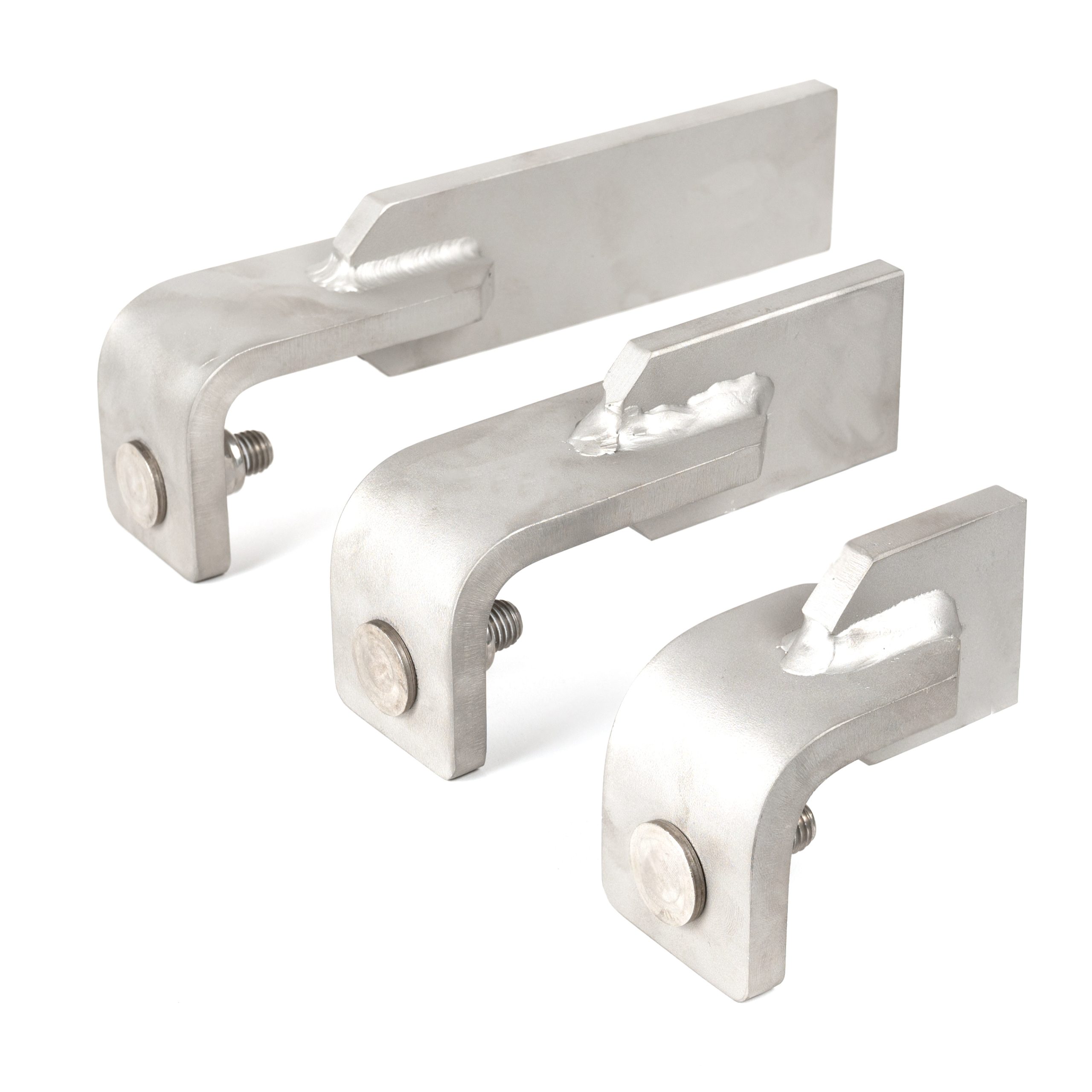

The weld-on bracket is used to attach the riser to a metal substructure.
- Available in steel, steel (hot-dip galvanized) and stainless steel
3 variants for your requirements
Projections: 160mm (standard), others in 10mm increments up to max. 280mm
ST
Steel St-roh (1.0037)
- incl. Screw
- Weight: 0,8kg
ST
Steel St-tZn, hot-dip galvanized (1.0037)
- incl. Screw
- Weight: 0,8kg
VA
Stainless steel, pickled (1.4401/1.4571)
- incl. Screw
- Weight: 0,8kg
These components you need for your fall protection system
- Guide rail or ladder with integrated guide rail
- Fastening element
- Profile connector
- Climbing lock bottom 12 kN
- Climbing lock top 12 kN
- Identification plate
- Collecting device
